Pipe Relining Mayfield
Pipe relining in Mayfield repairs a cracked or root-split sewer from the inside, giving the old line a seamless new wall without excavating the cottage yard. The plumber in Mayfield you ring for this work films the line first, quotes a fixed figure, and carries out the reline in a single booking.
Licensed plumbers and gas fitters · NSW Lic. 359278C
Last updated September 2026
How Do You Know It's Past Clearing?
A drain that keeps coming back is usually telling you the pipe itself is the problem. The signs that point to a reline rather than another clear:
- The sewer has blocked more than once inside a year, and each clear holds for less time
- The camera footage shows cracked or separated joints, with roots threading through the same spots every visit
- A section of the line has sagged, letting water and waste pool instead of running
- The yard smells of sewer after rain even when the fixtures inside drain normally
Roots are a symptom, not the disease. Cutting them out of a cracked earthenware joint buys months, not years, because the entry point is still there. Sealing the joint with a reline closes the door.
From Camera to Cured Liner
The method runs in five steps, with no trenches at any point.
- 01
Film the line
The drain camera records the full run so the damage, the material and the diameter are on screen before anything is quoted.
- 02
Clean the pipe
A jetter scours the walls so the liner bonds to sound pipe rather than grease and silt.
- 03

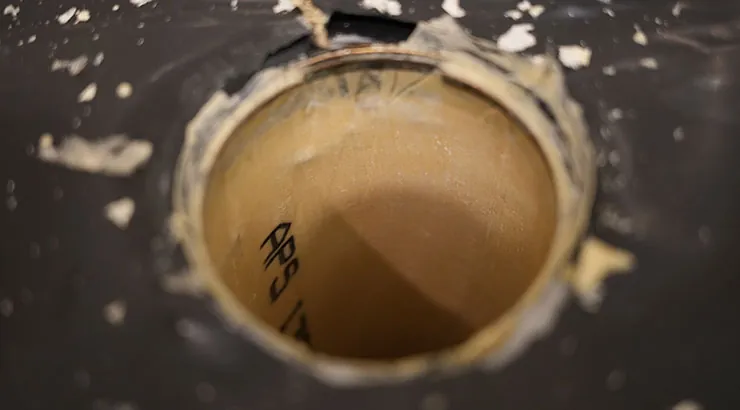

Insert the liner
A felt sleeve soaked in resin is pulled or inverted through the damaged section, then inflated against the pipe wall.
- 04
Cure it
The resin hardens, usually with hot water or steam, and the sleeve becomes a continuous new pipe inside the old one.
- 05
Film it again
A second camera pass confirms the reline is set and flowing, and the footage goes in the written report you keep.
The ground never dries out. Most of this suburb sits low near the Hunter River foreshore, where groundwater sits close to the surface and the soil around the old clay drains stays damp through every season. Cracked earthenware joints keep leaking instead of healing, and that constant moisture invites root systems back toward the gaps year after year.
Digging is costly here for a reason. The housing went up for the steelworkers on tight lots, from the cottage grid to the blocks near the Mayfield Bowling Club, so an excavated replacement means disturbing gardens, paths and sometimes footings to reach pipe laid a century back. A reline reaches the same pipe through access points that already exist, which is why the fixed figure for a liner is often well below the dig-out alternative. The blocked sewer page covers the clearing side of that decision, and tree root removal handles the lines that only need the roots dealt with.
"They were very understanding of my situation, with a work around for my pipe issues, which ended up being a fraction of the cost than previous quotes from another company." Sarah
What Moves the Price of a Reline?
We provide up-front, honest quotes that will always match the final price, should you decide to go ahead.
From there, the figure is shaped by:
- How far the damaged section runs A short cracked joint relines in one pull; a line failing end to end takes more liner, more resin and more time.
- How many access points the line has Fewer openings can mean creating one, which adds to the job.
- What the footage shows A collapse that has lost its shape may need excavation after all, and the camera tells you that before the quote, not after.
- The pipe diameter Larger sewers take bigger liners and more resin.
The CCTV drain inspection page explains the filming step in full, including what the written report covers.
When We're Not the Right Call
If the footage shows the fault sits in the main out under the road, that repair is the water authority's, and you will be pointed to the right number before we leave. A line that has flattened and lost its round shape cannot hold a liner, so excavation is the honest answer there. The blocked drains page lays out the other options the camera verdict can point to.
Four Questions Worth Asking First
Can you reline the earthenware sewer under a Mayfield cottage?
Yes. Relining was built for exactly that pipe. The felt liner and resin seal the cracked joints from the inside, so the old drain keeps serving the house without the yard being opened up.
Will my garden and driveway stay intact?
Almost always. The work runs through one or two existing access points, so the established garden, the paved paths and the driveway are left as they are. That is the main reason households choose a reline over a dig, especially where mature plantings sit over the old line.
Is relining covered by the warranty?
Yes. Every job carries the 365-day warranty on all work. The reline is pressure-tested on the day, and the same number that booked the job takes the call if anything about the finished work is not right.
How do I know if the line needs a reline or just another clear?
The camera decides. Footage showing repeat root entry, cracked joints or a sagging section means a clear will only be temporary. If the walls are sound and the blockage was silt or grease, a jetting clean costs less and the quote says so before any work.
